“Hmmm … this isn’t as easy as it looks.”  I had just taken the first cut with my new lathe and the piece of aluminum rod I was cutting looked like a rough rutted road instead of the nice shiny surface I thought I would get.  The noise and vibration didn’t thrill me, either.  I eventually figured out that the speed control was actually important, as was the feed wheel I had so merrily cranked.  After a few tries I finally got a mirror finish on that part but I realized that I had just flunked Metal Cutting for Dummies, Special Ed Division.

I didn’t set out to be a machinist, hobby or any other kind.  I simply had a whole slew of other interests that I was involved with and machining was supposed to be a supporting activity.  I realized that it was a major advantage to be able to repair almost anything, make something that is difficult to find or doesn’t even exist, or improve something that could be made better.  So rather than make do, I decided to make parts.  At least that was the intent.

This was 13 years ago and my interest in machining has turned into my main hobby!  My other interests have taken a definite back seat and I’m happy to say that while I never intended to be a hobby machinist … that is what I am.

So, what happened?  What could be so interesting about this hobby that it can keep someone engaged for more than a decade and put all his other interests on a back burner?  I think it’s because you’re always learning.  You see, hobby machining is not just about machining.  Its also about understanding your metals and other machineable materials and how they like to be cut, tools, tooling, cutters and their geometry, coolants and chemicals, heat treating, electricity and electronics, physics, geometry and trigonometry, hydraulics, machine design, and a myriad other subjects.  This pursuit of knowledge is driven by each project you do or problem you need to solve.  Before you know it, you know a lot about a lot of things!  This enriching experience coupled with the ability to make just about anything is really what keeps this hobby so interesting.

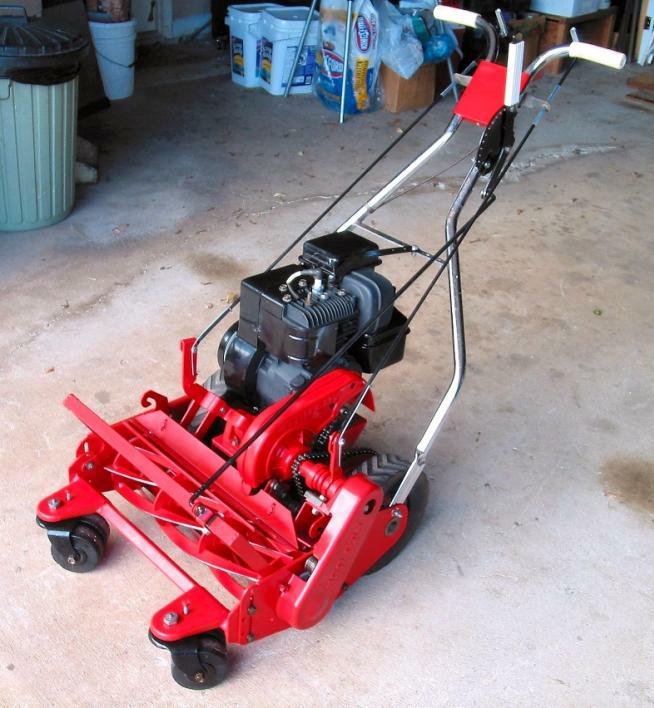

My Tru-Cut P-20S reel mower, restored to like-new condition for under $400.00 in my shop. Unlike its $1700.00 new counterpart, this one has precision bearings, stainless fasteners, and a reconditioned motor that runs great. Restorations like this are simple for a hobby machinist. Like I said, you can make stuff.

Whenever people ask me what I can make on my machines I answer, “Oh, just about anything.”  They always look puzzled because “anything” covers a whole lot of territory.  So here is the honest answer – you can make almost anything from just about any machineable material that fits within the working envelope of your equipment. If you need a custom part such as a hose adapter with metric threads on one end and SAE threads on the other, this is easily done.  Need a mandrel to make a pen on your lathe?  Make the mandrel, slip the wood onto it and turn the pen.  Model cars, model engines, steam engines and incredible locomotives are made by hobby machinists all the time.  How about parts for an invention you have in mind, or an adapter to fit a special lens onto a camera it normally wouldn’t fit?  The possibilities are seemingly endless and, once you learn how to machine stuff, you can make them.

I will tell you up front that this is not the cheapest of hobbies because you will need to buy some precision machine tools and their related accessories, precision measuring tools, and materials to make stuff from.  Depending on the size of the equipment you choose this can range from affordable to very expensive.  Most of us purchase a basic package to get us started and buy accessories and other tools as needed so that the cost is spread out but the cost is still there.

Is it worth the cost?  Absolutely.  In fact, while your equipment will cost you up front it can save you a lot of money in the long run by allowing you to make things that may be quite expensive.  My last project was an interchangeable-tip live center.  The commercial version of this tool runs about $1500.00; I made mine for about $25.00 and it is every bit as accurate as that expensive commercial model (they don’t even make one to fit my lathe).  The cost of this tool alone would have paid from my lathe and my mill!

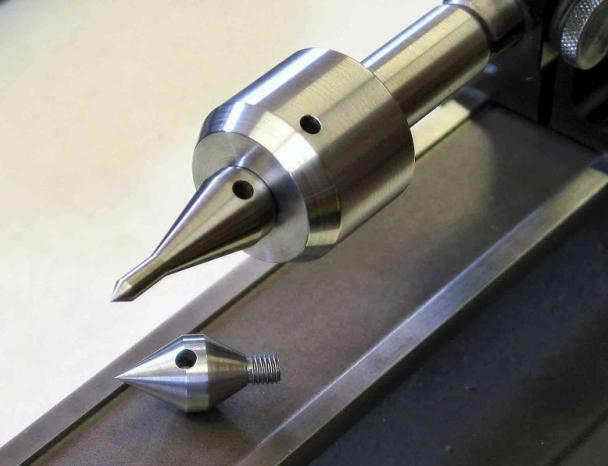

This live center is made from 1144 semi-hardened steel, with heat-treated O-1 steel tips. It was made entirely on the lathe and outperforms the OEM live center in both function and accuracy.

I also recently repaired a kerosene-burning clothes iron.  It was an heirloom owned by a friend and the brass pump handle had snapped.  I was able to reproduce the handle, repair the piston and it fired right up.  It now sits on a shelf next to her grandmother’s picture.  You can’t put a price on the smile I got from her!

There have been so many situations where being able to make something has salvaged a broken item or vastly improved the function of something that it’s hard to list them all but you get the idea.  So, what does it take to do this stuff?

At the heart of any machine shop you will find a lathe and a milling machine.  These are the two pieces of equipment that enable a machinist to do his or her thing.

The lathe works by turning your work piece while you move a cutter into it to cut it to the size and shape you need, producing a cylindrical object with precise dimensions.  Things like shafts, pins, knobs, screws and bolts, nuts – anything that needs to be cylindrical or round.  Called the King of machine tools, the lathe is one of the most useful and versatile tools you can own.

With the mill, the cutter turns instead of the work piece.  The work is held in a vice or fixed to the table and is moved into the cutter to produce the shape or profile you want.  This table is able to move in two axes (side to side and front to/and back), while the headstock that holds the cutter can move in a third axis (up and down). Control of these three axes allows you to shape a work piece into just about any shape you need.  The mill is said to be the only machine that theoretically can reproduce itself and most of the work in a machine shop is actually done on this machine.

Each of these machines performs their basic functions – a lathe cuts a cylinder and the mill profiles and shapes.  Each machine is able to perform a huge variety of other things by using attachments or accessories that expand on these functions.  For example, a lathe can cut a cylinder, which can then have a knurled finish put on it by using a knurling attachment.

This is a rear-mounted straddle knurler adapted from a design by Chris Heapy of the UK. It is made of steel and 6061 T-6 aluminum. Other than the spring and screws it was made entirely on the lathe and mill. On the right is a knurled finish made with this tool; it will become a knob for an archery bow sight.

Lathes and mills come in a wide variety of sizes, from tiny watchmaker’s machines to gargantuan shipyard machines.  The machine is generally chosen to suit the needs of the user.  For example, if you live on a farm and must make repair parts for a tractor you need a lathe with enough capacity to do that.  On the other hand, if you live in an apartment and your shop is in the spare bedroom then you will need a much smaller machine that you can carry and put away when you’re done.  In general, the cost of the machines and their accessories is proportional to their size, and the size of machine is chosen by estimating the largest work piece it will have to work on.

For the beginner this size thing can be a conundrum.  How do you know how big a part you need when you haven’t needed to make it yet?  I can’t tell you that but it may help to know that I am an average user who lives in a city and makes parts for my own use.  I own a Sherline long bed lathe and milling machine to make stuff for cars, machine restoration, welding and woodworking equipment, car audio, archery equipment, lawn equipment, fishing stuff, general repair work – the list goes on and on.  For me, the vast majority of my work is under 6″ long and less than 1″ in diameter.  I do need to go larger on occasion and my lathe can turn a piece up to 3″ in diameter (up to 5″ with risers) and up to about 15-17″ long.  I can turn or cut most materials, from wood to plastic, mild steel to stainless steel, and just about anything in between.  I have not exceeded the capacity of my lathe or mill yet but I’ve come really close.

My point is that a small machine – in my case a “miniature” or “mini” machine – is capable of doing the vast majority of the work I need.  This class of machine is probably amongst the lowest in cost; there are a LOT of them to choose from and most are available as manual or CNC machines. Rather than go into a description of the field I would suggest doing some homework if you are considering joining us in this hobby.  There is a lot of information on the net, in videos, books, magazines and the maker’s websites so you can make an informed decision.  Or you can always ask Rob!

Before ending I want to offer a bit of advice about buying precision measuring tools, and only because it is a potential sinkhole.  In this hobby you will discover that you can only cut as accurately as you can measure and to measure you need tools.  I’m sure you’ve heard of micrometers, vernier or dial calipers, dial indicators and the like.  These instruments vary in cost and quality but, in general, you get what you pay for.  If I were just getting into machining here is what I would do.  Go to the Long Island Indicator Service website and learn about what these instruments do and which ones are the best ones in each category, then go out and buy the best one – and buy it once.  You don’t need to buy it from Long Island Indicator Service, though if you do you will find them to be honest and of high integrity.  Many of the finest tools are for sale on eBay for a fraction of their retail cost; this is where I would check first.

If you know a photographer with a really good tripod I would bet money they have 3 or 4 cheaper tripods sitting in the closet that more than equal the cost of the good one.  Precision measuring instruments are like tripods.  Save the money by buying the best instrument for your needs and only buy it once.  You will be very glad you did … and don’t ask me how I know this.

I hope this discussion gives you an idea of what this hobby is like.  It isn’t just for guys, it isn’t hard to do, you don’t have to be rich or have a huge shop, and you don’t have to be “mechanically inclined.”  You can get into it to craft incredible model aircraft or jewelry, carburetor parts … or you can do it to make stuff, like me!  You’ll learn a great deal about a wide variety of subjects and the confidence you gain as you hone your skills is priceless.  The only thing I can think of that is more fun than this is maybe your favorite Black Diamond ski slope … nope, not even that!

Mikey

2010

This is a hub for a custom coffee roaster, shown with a tap in one of 13 precision-spaced holes. It was turned on the lathe and finished on the mill in well under an hour.
