How To Square Up Stock On A Mill

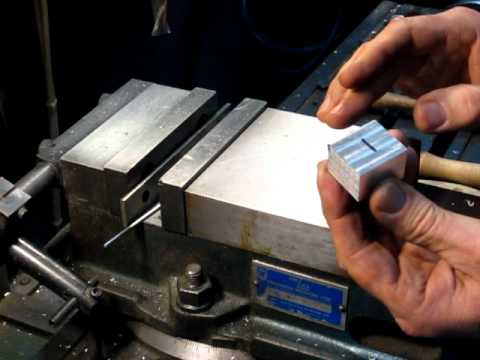

This is the best video I’ve ever seen on squaring up a piece of stock on a mill.  You’ll also see how a pro deburrs edges and see how quickly and smoothly he can turn the hand wheels (I don’t think he’s using a power feed).  He also says you should start with a piece of stock that’s been cut  so you’ll only need to make one rough cut and one finish cut on the mill.  That sounds like a good advice if you have a Bridgeport but it’s probably not doable if you have a hobbyist-type mill because you may only be able take off .020 to .050-inches in those two passes.  So your saw cuts (hacksaw, bandsaw, cold saw, etc.) would have to be very precise and square.

Grinding Lathe Tools on a Belt Sander – Part 3

This is the last article in Mikey’s series about grinding lathe tool bits.  In part 1 he discussed his experiences with grinding bits, why he uses a belt sander instead of a bench grinder and introduced some terminology about tool bit shapes and angles. In part 2 he covered tip geometry and tool shapes in more depth.  Here he describes the actual process of grinding a tool bit.

Grinding a tool

ALWAYS wear eye protection, hearing protection, a dust mask and leather gloves when grinding. No tool is worth sacrificing your body parts.

Remember, no angle works in isolation

Think about what you need with regard to shape, strength, tip access, and the type of material(s) you will use the tool on. Choose your relief and side rake angles and when you are clear on what you intend … just grind it that way. This thought process is illustrated below.

Let’s grind a general purpose right hand tool from a 3/8” HSS blank that should work with steel, aluminum, plastics and stainless. It is not optimized for any of these materials but should work fairly well with all of them. You can rough, face and finish by varying the lead angle of the tool. By choosing a general shape for multiple materials we need to think about the compromises these choices force on us:

  • The overall shape will be half-way between a rougher and a facing tool. To allow this tool to face into a shoulder we’ll give it an end cutting edge angle of 80- 85 degrees. This more acute angle reduces tip strength a little but is of no concern on a small lathe even when roughing, though it does add to the equation.
  • To reduce cutting forces we will use a conservative side relief angle of 15 degrees and a more aggressive end relief angle of 15 degrees; both changes will improve facing, finishing and edge penetration. In addition to turning you can also use this tool for chamfering with the side and end.
  • Since I am losing some strength by using greater angles for side and end relief as well as from that more acute end cutting edge angle, I’ll try to conserve some strength and compromise chip clearance a little by keeping the side rake conservative at 15 degrees. Back rake is at the high end of the standard range at 15 degrees to further assist the side rake in improving chip clearance; it also boosts finishing potential.
  • We’ll use a nose radius between 1/64” and 1/32” to allow a deep cut while still giving a fair finish.
  • A LH tool is the same except the shape is reversed.

As you can see, multi-purpose tools require some compromise. I have given more emphasis to tip strength because we will also be using this tool for roughing, which creates large cutting loads in harder materials. We’ll discuss this further in the End Notes.

General Advice:

  • If you are new at this I suggest practicing on mild steel key stock from the hardware store, not HSS. It grinds easily and is cheap. Just cut it to the same size as your HSS blanks so you get a feel for handling a bit.
  • Let the belt cut; you want to use only moderate pressure – enough to keep the belt cutting continuously – and keep the tool moving back and forth across the entire width of the belt. The steel will show you some color to indicate how hot it is getting. HSS can get into the low red range without compromising the steel but if I see anything beyond dark straw I know I am using the wrong grit, my belt is worn or I’m putting too much pressure on the tool when grinding. It the tool gets too hot to hold let it air cool or just set it down on a brick – it cools fast.
  • The usual sequence I follow when grinding a tool is to cut the side first, then the end, followed by the top. This isn’t written in stone. You can grind the top face first to ensure the top and side cutting edges meet exactly at the edge as they should – think about it.

Seen below is my grinding setup. It is a ½ HP Craftsman 2” X 42” belt sander with a custom steel table settable to precise angles. The platen is a 2”W X 9” L X 1/4” thick piece of O-1 ground steel to which a Pyroceram liner is epoxied; it is dead flat after years of frequent hard use. It is equipped with a 24 grit Aluminum Oxide belt, soon to be coated with a wax stick lubricant. This belt cuts very fast and very cool when using only light to moderate pressure applied toward the belt and I highly recommend it for shaping. Just ease up on the pressure as you near the end of the grind to eliminate coarse grind marks. After shaping, you can change to progressively finer grits and produce a near mirror finish if you choose.

The table is set to 15 degrees to cut the side relief angle, the vertical angle under the side edge. The side cutting edge angle is determined by the angle with which you present the tool to the belt; as you grind it you are grinding the side relief angle at the same time. For this tool the side cutting edge angle is approximated so that 60% of the side is ground off when I am done. If I want a rougher I grind 40% off the side, 70% for a facer and 80% for a finisher. Continue reading Grinding Lathe Tools on a Belt Sander – Part 3

Grinding Lathe Tools on a Belt Sander – Part 2

Using tip geometry

Here is a table that presents the table angles we need to set when we grind standard lathe tools.  Note that the headings at the top of each column eliminate the word “angle” after each heading but otherwise matches the diagram above.  The front relief (angle) in the table is the same as the end relief angle in the diagram above.  The angles here are very important starting points for modifying tools.  If you simply wish to grind standard tools then grind with the angles listed here.

The values in the table are the number of degrees to which you must angle the grinder table for the particular feature you are grinding.  For example, when grinding a tool for aluminum you will angle the table of your grinder to 12 degrees and then grind the side; doing so will create a side relief angle of 12 degrees (your table setting) and the side cutting edge angle (dictated by the angle you hold the tool at as you grind the side) at the same time.  You then reset the table to 8 degrees and as you grind the end the table angle creates the 8 degree end relief angle as you shape the end cutting edge angle at the same time.  You then reset the table to 16 degrees and as you hold the tool at a 35 degree angle (to the belt) you feed the tool straight into the grinder to cut the top face; doing so cuts the side rake at 16 degrees while creating the desired 35 degree back rake at the same time.

In order to alter the tip geometry of our tools to lower cutting forces: Use the largest angle listed in the table as a baseline, and then add about 25-40%.  This works out to about 2-5 degrees higher than the largest recommended values and your tool will work better on your little lathe without endangering the tip excessively.  While these changes may seem very small and insignificant the reduction in cutting forces they produce are anything but.  The tool used for our cutting force demonstration earlier was ground with these conservative changes and it works well.

Keep in mind that none of the tip angles works in isolation.

  1. Increasing the relief angles without changing the side rake gives you a sharper interface at the edge so cutting forces decrease and finishes improve but you also limit chip clearance and lose some edge strength because the edge is not supported as well.
  2. Increasing side rake without altering the relief angles reduces cutting forces even more while improving chip clearance but finishing potential drops off a bit.  Because the edge is better supported if relief angles are not altered increasing side rake does not sacrifice edge strength as much.
  3. The effect of increasing back rake is not nearly as noticeable as when altering side rake.  However, increasing back rake will tend to focus the cutting forces at the tip of the tool while helping side rake to flow the chip out of the cut.
  4. If you increase both the relief and side rake angles then cutting forces plummet but the tip and edge strength is reduced a lot more so be aware of it when the tool will experience high cutting loads.  This is less of a concern for finishing tools.
  5. The shape of the tool has a significant impact on strength.  The more mass you have in the tip the more latitude you have with angle changes.

Table Notes:

  • Side rake for brass and bronze is not zero in the table but a flat, un-ground top works well for these materials.  Profiling tools also have zero top rake.  A flat rake keeps the tool from digging into soft, grabby materials or when there is a lot of edge contact between the tool and the work.  You don’t have to grind the top but you should hone it.
  • Side rake is the angle that varies the most with different materials.  In fact, side rake is the key variable at that tip. If you look at the relief angles in the table you will see that they don’t vary much between materials because clearance on a round part is still clearance and once you have it then, well, you have it.  When you vary the side rake the included angle of the side and end suddenly becomes more, or less, acute.  It is this alteration in included angle, also known as the angle of keenness, which changes to accommodate various materials.  Seemingly small changes to side rake can have a major effect on cutting forces and how the tool cuts.  Pay attention to side rake and use it to your advantage – it’s a major player.
  • Side rake for Stainless and Back Rake for Aluminum are very aggressive.  That’s a lot of steel to grind off.  You may want to look into grinding chipbreakers when grinding tools for these specific materials.  Chipbreakers break the long, stringy and dangerous chips into smaller pieces and are much easier to grind than the whole top of the tool.  I won’t go into chipbreakers here but you should know about them.

For optimum performance you can grind a set of tools (rougher, facing and finishing) for each material you commonly work with.  They will work far better than general purpose tools and are worth the time it takes to make them.  If you grind them as you need them you will have a complete collection in no time.  If you do make sets I suggest grinding the same face of each tool before changing your table angle to save setup time.

On the other hand, you can actually get away with less than optimal geometry.  For example, you can grind a general purpose tool that will work on mild steel, aluminum, stainless steel, plastics, tool steels, semi-hardened steels and brass.  The tool we will grind as an example below is one of these general purpose tools and the tool angles used are typical for a tool that has to cut multiple materials under varying conditions.  These tool angles are a compromise, just as the shape of a general purpose tool is a compromise but they work fairly well.

General purpose tools allow you to minimize the number of tools you need to grind.  For example, if you had to minimize the number of tools in the drawer you could have a general purpose right hand and left hand tool, a RH and LH general purpose knife tool for facing (see the end of this discussion), a zero-rake 60 degree threading tool and a zero-rake round nose tool with a 1/64”-1/32” nose radius (for between-shoulders work and general cutting of brass).  Add a HSS blade-type cut off tool with a 7 degree face used in a rear-mounted tool holder and you can handle most general jobs in a hobby shop.

An important angle you may see that isn’t in any table is called the Lead Angle (LA).

The LA is not ground into the tool; it is set by positioning the side cutting edge relative to the work piece.  In general, a tool is used with the shank positioned perpendicular to the work; in this case, the LA is equal to the side cutting edge angle.  However, increasing or decreasing the LA of the tool to suit your purpose works better.

Increasing LA can significantly improve finishes; for this reason MHB recommends using the maximum LA possible as long as there is no chatter.  Remember that increasing LA also increases cutting forces because more of the side cutting edge comes into contact with the work.  The effect of this is most readily seen on thin, flexible work pieces in the form of chatter.  On larger pieces that don’t flex much a large LA can really improve finishes.

If you develop chatter at any time, especially on thin pieces or on hard materials try reducing the LA (move the side cutting edge more perpendicular to the work) and things will improve.  In some cases going to a negative LA really helps, especially on thin work or an ambitious roughing cut.  The effect of reducing LA is equivalent to reducing depth of cut and increasing feed, which has a positive effect on reducing chatter.  Try playing with LA to further modulate cutting forces on the lathe – it can be useful.

Another term you may see is the Angle of Keenness.  This is the included angle formed by the side and top of the tool as you look at it from the tip end of the tool.  For harder materials this angle is less acute and for softer materials it is more acute.  Back in the day, before angle tables became widespread, machinists ground their tools with this angle: less acute for hard stuff, more acute for soft stuff.  Since the hardness of the material being cut is accounted for by the angles found in the angle table I ignore this angle but mention it here for completeness.  If you were paying attention, this is the angle that changes as you alter your relief and side rake angles.  Those old guys knew what they were doing.

Lathe tools come in many shapes, each suited to a particular task.

Continue reading Grinding Lathe Tools on a Belt Sander – Part 2

How to build a flat work surface

I needed a large and very flat work surface to build my CNC router table on.   I didn’t have a big enough workbench and I didn’t want to take the time or spend the  money to build one.  And concrete floors aren’t as flat as you might think, especially mine.  So I used a 3/4-inch thick piece of MDF, some 3/8-inch tee nuts and bolts to build a temporary flat work surface on my basement floor.  Here’s how I did it:

  • I marked the locations for the tee nuts by drawing lines 3-inches from the edges of the MDF to leave room for the pieces of my router table.  I also found the center of the board by drawing diagonal lines from the corners.
  • I installed 3/8-inch tee nuts at the corners of my drawn rectangle, at the center of each side, and at the center of the board.  Then I put bolts in just the four corners and screwed them in about half-way.

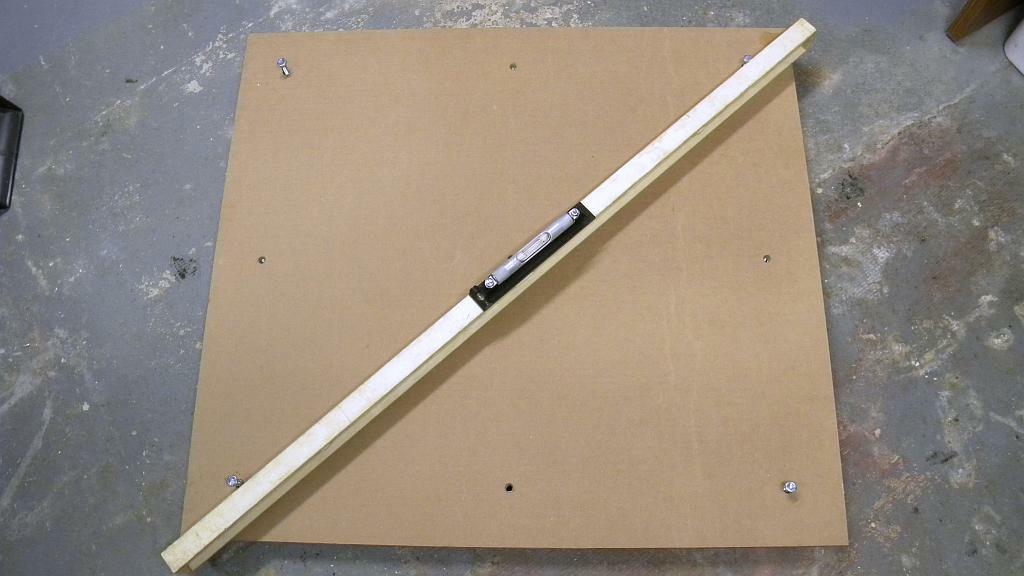

  • The next step was to level it, which was easy.  I placed a long construction level on the diagonal between two corners and adjusted the bolts in those corners until it was level (at least one of the other two bolts should not be touching the floor).  Then I leveled the other diagonal by adjusting its corner bolts.
  • I double checked to make certain all the edges were level and made some small tweaks.  When I was happy with the results I screwed in the other bolts until they just barely touched the floor.  Their only purpose was to make certain the MDF didn’t sag where it wasn’t supported by the corner bolts.  They may not even be necessary, especially if you’re only going to use it for a short time.

A machinists level is more precise

I have an 8-inch Starrett machinist’s level that I’d never really used before this.  I put it on top of my construction level and was amazed at how much more precise it was.  And when I put it directly on the MDF it showed small raised areas around the tee-nuts that I’d probably created by pounding them in with a hammer.  They weren’t enough to matter but I could have avoided them by hammering the nuts in just enough for their teeth to make contact with the MDF.  Or I could have ground or filed their teeth off leaving only the flanges because there was probably enough friction in the holes to keep them from turning.

By the way, don’t buy a traditional machinists level unless you can get one for a very good price like I did.  Digital levels cost much less, they’re at least as accurate and they can do more tricks.  I’ll say more about that when I talk about getting my router’s rails parallel both horizontally and vertically.

MDF or Particle Board?

I was going to use particle board instead of MDF because it’s stiffer, stronger, cheaper and the sheets I’d bought in the past always seemed to be very flat.  I’d put a sheet of particle board in my shopping cart but when I went to have Home Depot cut it I noticed it had a very noticeable curve.  An employee was waiting so I quickly decided to use MDF instead.  MDF seemed to work well for this project but I’m not sure it was the best material to use.  I’d like to know what you think.

Giving credit where it’s due

I didn’t come up with this idea myself.  I learned it from this video which shows it being used to create a level surface for candle molds. Continue reading How to build a flat work surface
